Digital Automatic Marshall Compactor Machine , Marshall Compaction Hammer

Name: Digital Automatic Marshall Compactor Machine Marshall Compaction Hammer
Brand: wangtebei
Price: 1000 USD

Brand Name : wangtebei

Model Number : MDJ-IIC

Place of Origin : China

MOQ : 1 set

Price : 1000-1200USD/set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 5-8 working days

Packaging Details : export package

Falling distance : 457±1.5 mm

compaction speed : 60 ± 5 times / min

the number of presets : 0-999 times

hammer weight : 10210g ± 10g 4536 ± 9g

test cylinder diameter : 152.4mm 101.6mm

dimensions : 670X570X1800mm

Contact Now

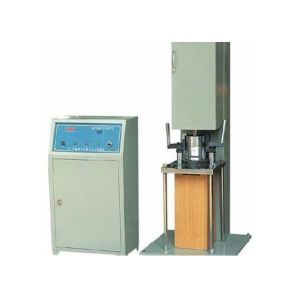

MDJ-IIC Marshall Electric Compactor

Introduction to MDJ-IIC Marshall Electric Compactor
MDJ-IIC Asphalt Mixture Marshall Electric Compactor is suitable for the standard compaction method to make asphalt mixture test piece for the test room to test the physical and mechanical properties of asphalt mixture. It is also suitable for Marshall test and indirect tensile test. The molding of a cylindrical test piece of Φ152 mm ± 0.2 mm × 115 mm / Φ 101.6 mm ± 0.2 mm × 63.5 mm is used.

Main features of MDJ-IIC Marshall electric compactor
1, can achieve automatic counting, automatic compaction, automatic shutdown.
2, with a hammer holder, and a manual handle, you can easily lift the hammer.
3, semi-automatic die-pressing device, it is more convenient to take the die.
4, integrated hammer head, will not fall off, will not break, crack.
5, small Marshall test models and large Marshall test models can be used.

Main technical indicators of MDJ-IIC Marshall electric compactor

No	Item	Spec
1	Falling distance	457±1.5 mm
2	compaction speed	60 ± 5 times / min
3	the number of presets	0-999 times
4	hammer weight	10210g ± 10g 4536 ± 9g
5	test cylinder diameter	152.4mm 101.6mm
6	dimensions	670X570X1800mm
7	weight	175Kg
8	the power supply voltage	380V
9	power	370W
10	ambient temperature	5 ~ 40 ° C
11	environmental humidity	≦ 85%
